MikroTik RBcAPGi-5acD2nD -MikroTik cAP AC 80211ac Dualband AP
MikroTik cAP AC, 716 MHz işlemci, 128MB RAM, 2x2 Mimo, 26 dBm (400mW) 802.11ac 2.4Ghz/5GHz dualband radyo kartı ve 802.3af/at PoE+ destekli 2 adet Gigabit ethernet portu ile Otel, Yurt, Ofis vb. işletmelerin veya Kablosuz internet servis sağlayıcıların ihtiyaçlarını karşılamak amacı ile performas ve maliyet ön planda tutularak üretilmiştir. 2.4 Ghz için 2 dBi, 5Ghz için 2.5 dBi kazanca sahip 360 derecelik dahili anten ile 100+metre yarı çaplı bir alanı kapsama altına alabilir ve cihaz üzerindeki 4 çekirdekli 716Mhz işlemci sayesinde 200+ kullanıcıya kesintisiz hizmet sağlayabilirsiniz.
Cihaz; üzerindeki 1 numaralı Gigabit ethernet portu 802.3af/at desteği sayesinde herhangi bir PoE switch ile birlikte kurulum imkanı sağlarken, 2. ethernet portu üzerinden 57V a kadar pasif PoE çıkışı sağlayarak cihazınızın konumlandırıldığı noktaya yakın konumdaki 802.3af/at destekli Güvenlik kamerası, IP telefon vb. ekipmanlar için PoE besleme ve Gigabit data bağlantısı sağlayabilmektedir. Standart RouterOS işletim sisteminin tüm özelliklerini kullanıcısına sunan MikroTiK cAP AC, Oteller veya yurtlar gibi toplu internet kullanımı ihtiyacı bulunan ağ yapılarında ise MikroTiK markasına özel CAPsMAN merkezi cihaz yönetim altyapısı sayesinde esnek bir kullanım imkanı sunmaktadır
Specifications
| Details | |
|---|---|
| Product code | RBcAPGi-5acD2nD |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Switch chip model | IPQ-4018 |

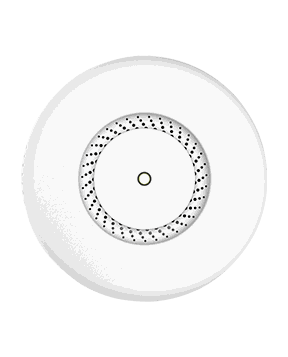

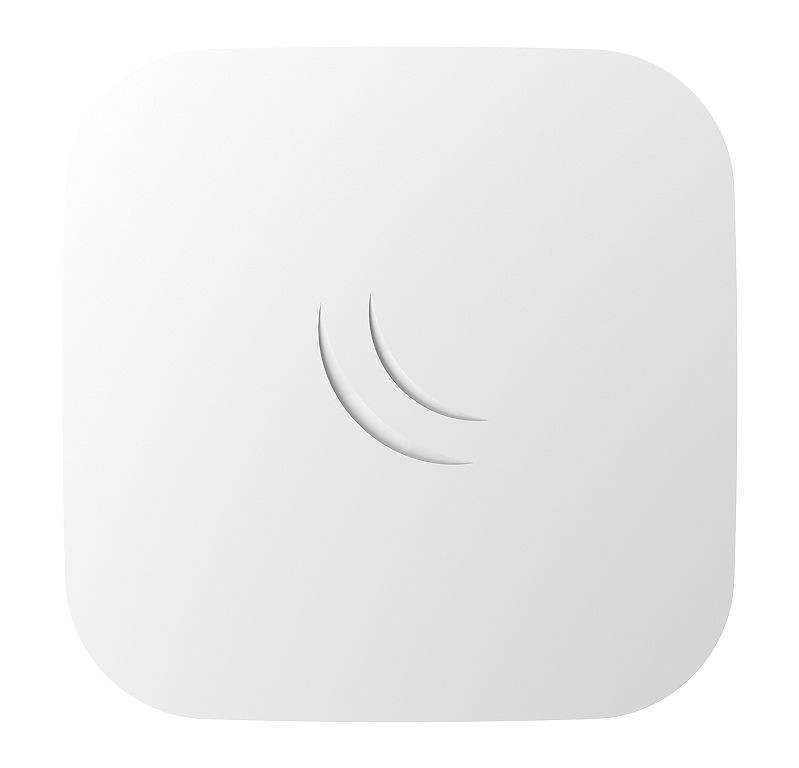

| Dimensions | Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 50°C |
| IPsec hardware acceleration | Yes |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1200 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 24 W |
| Max power consumption without attachments | 13 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 17-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 500 mA |
| Max out per port output (input 30-57 V) | 400 mA |
| Max total out (A) | 500 mA |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Other
| Details | |
|---|---|
| Mode button | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 26 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 18 | -70 |
Ethernet test results
|
RBcAPGi-5acD2nD |
IPQ-4018 1G all port test |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
162.5 |
1973.4 |
469.9 |
1924.7 |
1484.8 |
760.2 |
|
Bridging |
25 bridge filter rules |
162.1 |
1968.5 |
352.9 |
1445.5 |
359.2 |
183.9 |
|
Routing |
none (fast path) |
162.5 |
1973.4 |
469.9 |
1924.7 |
1488 |
761.9 |
|
Routing |
25 simple queues |
162.5 |
1973.4 |
469.9 |
1924.7 |
506.3 |
259.2 |
|
Routing |
25 ip filter rules |
162.2 |
1969.8 |
240.8 |
986.3 |
242.9 |
124.4 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet
sizes
- Test results show device maximum performance, and
are reached using mentioned hardware and software configuration, different
configurations most likely will result in lower results
IPsec test results
|
RBcAPGi-5acD2nD |
IPQ-4018 IPsec throughput |
||||||
|
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Single tunnel |
AES-128-CBC + SHA1 |
37.9 |
424.5 |
59 |
241.7 |
61.6 |
31.5 |
|
256 tunnels |
AES-128-CBC + SHA1 |
36 |
403.2 |
38.5 |
157.7 |
39.8 |
20.4 |
|
256 tunnels |
AES-128-CBC + SHA256 |
36 |
403.2 |
38.5 |
157.7 |
39.8 |
20.4 |
|
256 tunnels |
AES-256-CBC + SHA1 |
34.4 |
385.3 |
37.9 |
155.2 |
39.8 |
20.4 |
|
256 tunnels |
AES-256-CBC + SHA256 |
34.4 |
385.3 |
37.9 |
155.2 |
39.8 |
20.4 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet
sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
