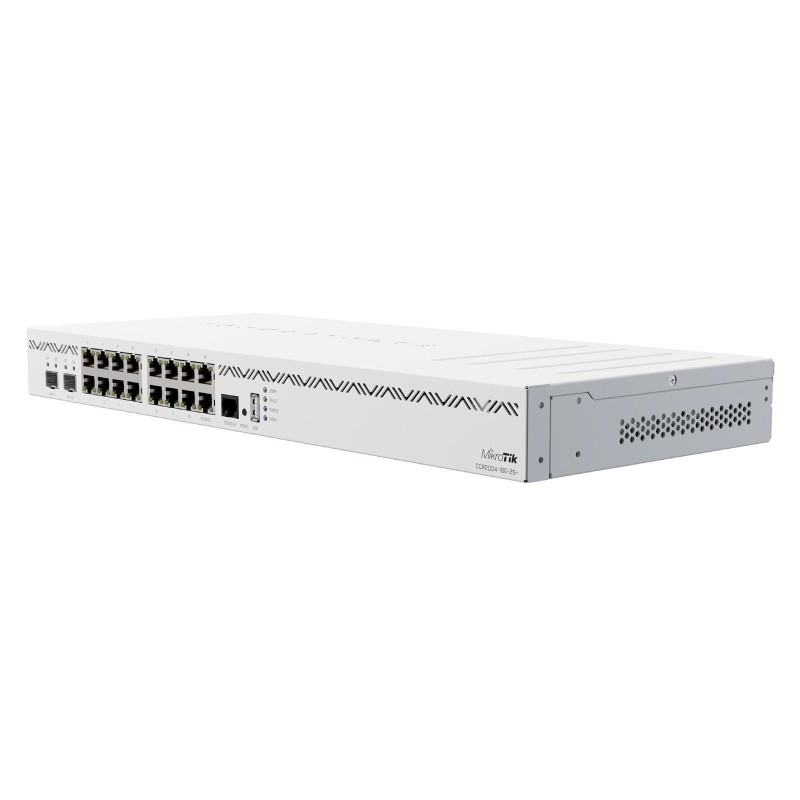

Mikrotik CCR2004-16G-2Splus Firewall Router Hotspot
1,7 GHz hızında çalışan 64 bit ARMv8-A Cortex-A57 4 çekirdekli işlemci, 2 adet 10 G SFP+ slotu, 16 adet Gigabit ethernet portu, 4 GB RAM, 128MB Depolama alanı ve yedekli enerji beslemesi için çift güç kaynağına sahip MikroTik CCR2004-16G-2S+ toplamda 18 adet fiziksel data bağlantı arayüzüne sahiptir.
Tek çekirdek işlemci performansında CCR serisi tüm cihazların üzerinde verimlilik sağlayan ve enerji tüketim konusunda en cimri işlemci olarak isimlendirebileceğimiz 1,7 GHz hızında çalışan 64 bit ARMv8-A Cortex-A57 4 çekirdekli Amazon Annapurna Labs Alpine v2 işlemcisi, 2 adet 10 G SFP+ slotu, 16 adet Gigabit ethernet portu, 4 GB RAM, 128MB Depolama alanı ve yedekli enerji beslemesi için çift güç kaynağına sahip MikroTik CCR2004-16G-2S+ toplamda 18 adet fiziksel data bağlantı arayüzüne sahiptir, üzerinde bununan 2 farklı 8'li ethernet grubunun her biri en iyi verimlilik için Marvell Amethyst Anahtarlama işlemcisi ile ayrı 10 Gigabitlik veri yolları ile doğrudan işlemciye bağlı olarak tasarlanmış, SFP+ portları için ise iki ayrı 10 Gigabitlik veri yolu yine doğrudan işlemci ile bağlanacak biçimde tasarlanarak işlemci bant genişliği kapasitesinin en iyi verimlilikte kullanılması sağlanmıştır.
Details |
|
Product code |
CCR2004-16G-2S+ |
Architecture |
ARM 64bit |
CPU |
AL32400 |
CPU core count |
4 |
CPU nominal frequency |
1700 MHz |
Switch chip model |
88E6191X |
Dimensions |
443 x 210 x 44 mm |
RouterOS license |
6 |
Operating System |
RouterOS (v7 only) |
Size of RAM |
4 GB |
Storage size |
128 MB |
Storage type |
NAND |
MTBF |
Approximately 200'000 hours at 25C |
Tested ambient temperature |
-20°C to 60°C |
IPsec hardware acceleration |
Yes |
Details |
|

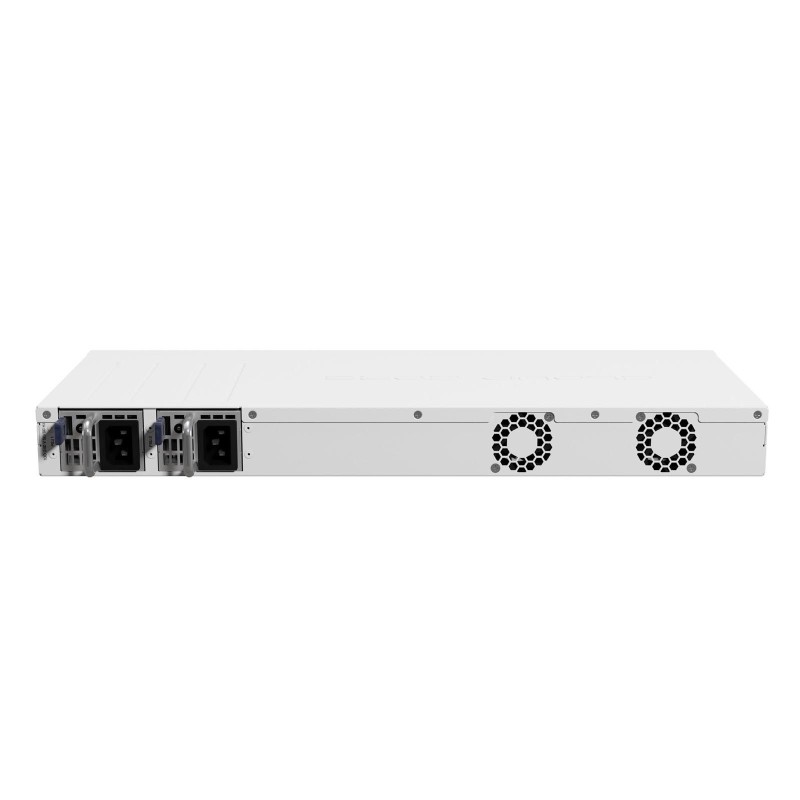

Number of AC inputs |
2 |
AC input range |
100-240 |
Frequency (Hz) |
50-60 |
Max power consumption |
48 W |
Max power consumption without attachments |
35 W |
Cooling type |
2 fans |
Details |
|
10/100/1000 Ethernet ports |
16 |
Details |
|
SFP+ ports |
2 |
Details |
|
Serial console port |
RJ45 |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB 3.0 type A |
Max USB current (A) |
0.9 |
Details |
|
CPU temperature monitor |
Yes |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Details |
|
Certification |
CE, EAC, ROHS |
IP |
IP20 |
Ethernet test results
CCR2004-16G-2S+ |
AL32400 all port
test (CCR2004-16G-2S+) |
||||||
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
Bridging |
none (fast path) |
2925.9 |
35532.1 |
6775.1 |
27750.8 |
9776.7 |
5318.5 |
Bridging |
25 bridge filter
rules |
1396.6 |
16960.3 |
1410.7 |
5778.2 |
1375.2 |
748.1 |
Routing |
none (fast path) |
2925.9 |
35532.1 |
6749 |
27643.9 |
8260.6 |
4493.8 |
Routing |
25 simple queues |
1186.3 |
14406.4 |
1933 |
7917.6 |
1196.9 |
651.1 |
Routing |
25 ip filter rules |
722.2 |
8770.4 |
1114.7 |
4565.8 |
724.4 |
394.1 |
1. All tests are done
with Xena Networks specialized test equipment (XenaBay),and done according to
RFC2544 (Xena2544)
2. Max throughput is
determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512,
1518 byte packet sizes
3. Test results show
device maximum performance, and are reached using mentioned hardware and
software configuration, different configurations most likely will result in
lower results
IPsec test results
CCR2004-16G-2S+ |
AL32400 IPsec
throughput |
||||||
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
Single tunnel |
AES-128-CBC + SHA1 |
203 |
2273.6 |
204.1 |
836 |
202.2 |
103.5 |
256 tunnels |
AES-128-CBC + SHA1 |
232.4 |
2602.9 |
230.5 |
944.1 |
222.2 |
113.8 |
256 tunnels |
AES-128-CBC + SHA256 |
232.4 |
2602.9 |
230.5 |
944.1 |
222.2 |
113.8 |
256 tunnels |
AES-256-CBC + SHA1 |
232.3 |
2601.8 |
227.3 |
931 |
238.1 |
121.9 |
256 tunnels |
AES-256-CBC + SHA256 |
232.3 |
2601.8 |
227.3 |
931 |
238.1 |
121.9 |
1. All tests are done
with Xena Networks specialized test equipment (XenaBay),and done according to
RFC2544 (Xena2544)
2. Max throughput is
determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512,
1400 byte packet sizes
3. Test results show
device maximum performance, and are reached using mentioned hardware and
software configuration, different configurations most likely will result in
lower results
The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes free
software updates for the life of the product or a minimum of 5 years starting
from date of purchase..
