MikroTik CCR1072-1G-8S+ Firewall Router Hotspot

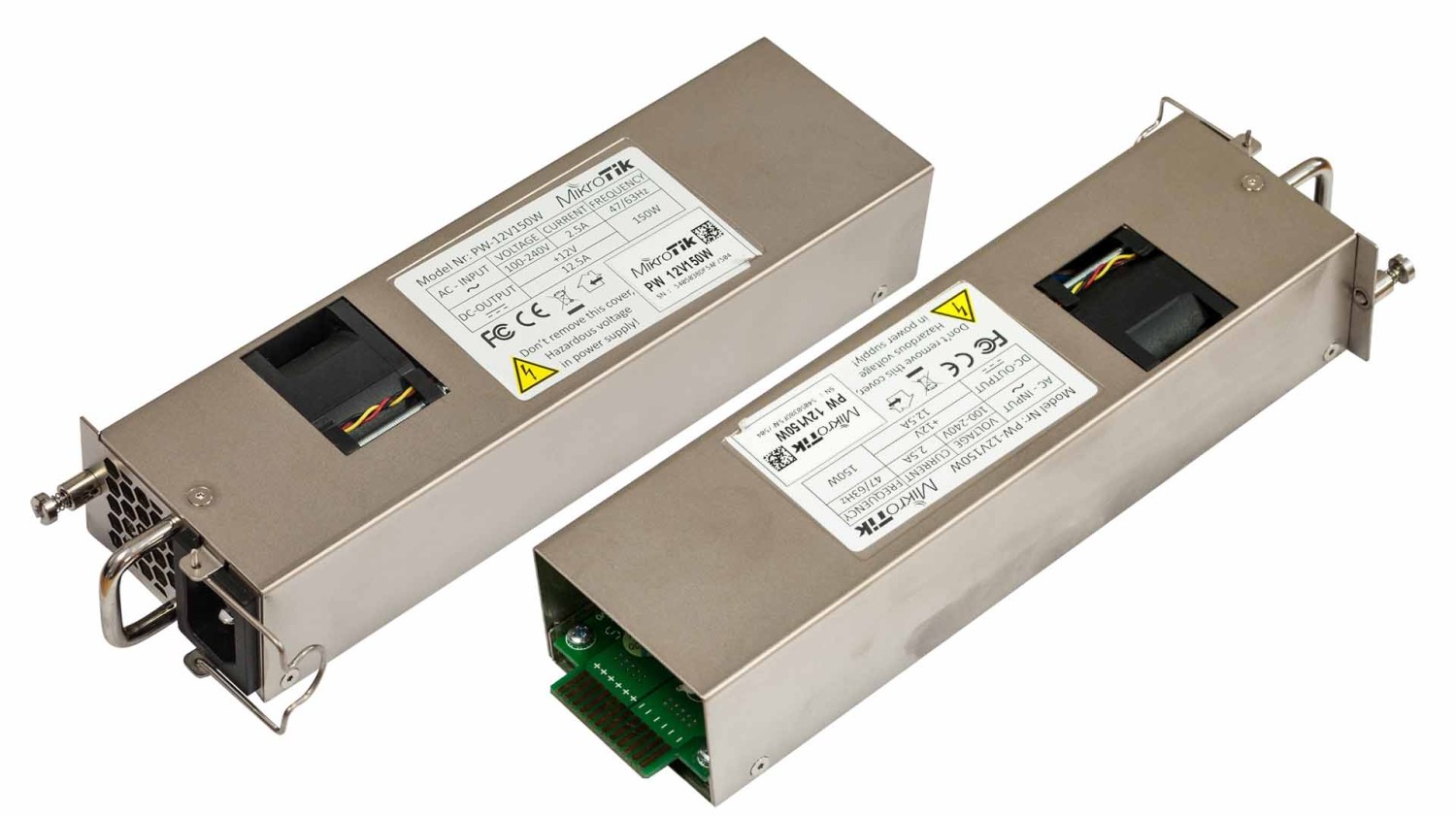

MikroTik CloudCoreRouter 1072, 72 çekirdekli Tilera işlemci, 16GB RAM, 8 SFP+, 1 Gigabit portu 2 adet Hot spwap destekli PSU ve RouterOS işletim sistemine sahip CCR1072-1G-8S+ özel işlemcisi sayesinde saniyede 100 milyon Paket taşıyabilmektedir.
MikroTiK CCR1072-1G-8S+, Büyük ölçekli Ağ yönetm ihtiyaçları için özel tasarlanmış 72 Çekirdekli tilera işlemcisi, 16GB DDR3 1333 MHz Ram, birbirinden bağımsız kontrolcüler tarafından yönetilen 8 adet 10 G SFP+ portu ve 1 adet Gigabit ethernet portu ile saniye başına 100.000.000 paket taşıma imkanı sağlamaktadır. 64bit mimarisi baz alınarak yeniden tasarlanan RouterOS işletim sistemininde RAM bellek sınırlandırılması kaldırılmıştır, Geniş ölçekli ağ yönetimi için benzersiz bir şekilde tasarlanmış teknik donanımına hayat veren RouterOS işletim sistemi ile ağ yönetiminizi hiç olmadığı kadar esnek hale getirebilirsiniz.
Cihaz sunduğu yazılım ve donanım özellikleri ile geniş ölçekl ağ yapılarının Dinamik yönlendirme, Hotspot, PPPoE, Firewall, LOG,MPLS, Gelişmiş QoS, Yük Dengeleme (Load Balancing), Bonding, VPN,BGP,OSPF vb. gibi ihtiyaçlarını karşılayabilmektedir.
Specifications
|
Details |
|
|
Product code |
CCR1072-1G-8S+ |
|
Architecture |
TILE |
|
CPU |
TLR4-07280 |
|
CPU core count |
72 |
|
CPU nominal frequency |
1 GHz |
|
Dimensions |
443 x 315 x 44 mm |
|
RouterOS license |
6 |
|
Operating System |
|
|
Size of RAM |
16 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-20°C to 60°C |
|
IPsec hardware acceleration |
Yes |
|
|
|
Powering
|
Details |
|
|

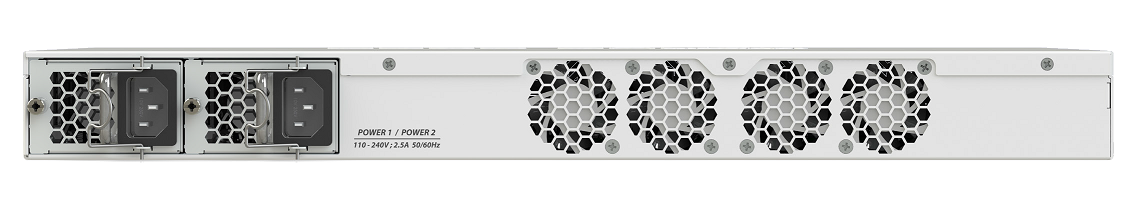

Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Max power consumption |
125 W |
|
Cooling type |
4 fans |
Ethernet
|
Details |
|
|
10/100/1000 Ethernet ports |
1 |
Fiber
|
Details |
|
|
SFP+ ports |
8 |
Peripherals
|
Details |
|
|
Memory card type |
microSD, 2x M.2 |
|
Memory Cards |
3 |
|
Serial console port |
RJ45 |
|
Number of USB ports |
2 |
|
USB Power Reset |
Yes |
|
USB slot type |
microUSB type AB; USB type A |
|
Max USB current (A) |
1 |
|
Smart card slot |
Yes |
|
Number of M.2 slots |
2 |
Other
|
Details |
|
|
CPU temperature monitor |
Yes |
|
Current Monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Beeper |
Yes |
Certification & Approvals
|
Details |
|
|
Certification |
CE, EAC, ROHS |
Ethernet test results
|
CCR1072-1G-8S+ |
Tile 72 Core
(1000Mhz, DDR1333) Max possible throughput |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
98,801.0 |
50,586.1 |
|
Bridging |
25 bridge filter
rules |
5,033.3 |
61,124.4 |
7,149.8 |
29,285.6 |
8,682.1 |
4,445.2 |
|
Routing |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
73,061.0 |
37,407.2 |
|
Routing |
25 simple queues |
6,502.0 |
78,960.3 |
10,980.3 |
44,975.3 |
11,368.2 |
5,820.5 |
|
Routing |
25 ip filter rules |
4,125.6 |
50,101.3 |
5,051.5 |
20,690.9 |
4,999.0 |
2,559.5 |
|
CCR1072-1G-8S+ |
Tile 72 Core
(1000Mhz, DDR1600) Max possible throughput |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
98,873.5 |
50,623.2 |
|
Bridging |
25 bridge filter
rules |
5,764.8 |
70,007.7 |
8,240.2 |
33,751.9 |
8,866.3 |
4,539.5 |
|
Routing |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
76,201.0 |
39,014.9 |
|
Routing |
25 simple queues |
6,502.0 |
78,960.3 |
11,073.5 |
45,357.1 |
11,444.4 |
5,859.5 |
|
Routing |
25 ip filter rules |
4,664.7 |
56,648.1 |
5,200.3 |
21,300.4 |
5,321.0 |
2,724.4 |
|
CCR1072-1G-8S+ |
Tile 72 Core
(1200Mhz, DDR1333) Max possible throughput |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
119,047.6 |
60,952.4 |
|
Bridging |
25 bridge filter
rules |
6,130.5 |
74,448.8 |
8,192.7 |
33,557.3 |
10,339.5 |
5,293.8 |
|
Routing |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
86,507.0 |
44,291.6 |
|
Routing |
25 simple queues |
6,502.0 |
78,960.3 |
12,370.4 |
50,669.2 |
13,474.2 |
6,898.8 |
|
Routing |
25 ip filter rules |
4,667.6 |
56,683.3 |
5,985.1 |
24,515.0 |
5,873.8 |
3,007.4 |
|
CCR1072-1G-8S+ |
Tile 72 Core
(1200Mhz, DDR1600) Max possible throughput |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
119,047.6 |
60,952.4 |
|
Bridging |
25 bridge filter
rules |
6,502.0 |
78,960.3 |
9,099.2 |
37,270.3 |
10,432.3 |
5,341.3 |
|
Routing |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
94,668.4 |
48,470.2 |
|
Routing |
25 simple queues |
6,502.0 |
78,960.3 |
13,500.0 |
55,296.0 |
13,683.5 |
7,006.0 |
|
Routing |
25 ip filter rules |
5,247.6 |
63,726.9 |
6,125.5 |
25,090.0 |
6,104.0 |
3,125.2 |
1. All tests are done
with Xena Networks specialized test equipment (XenaBay),and done according to
RFC2544 (Xena2544)
2. Max throughput is
determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512,
1518 byte packet sizes
3. Test results show
device maximum performance, and are reached using mentioned hardware and
software configuration, different configurations most likely will result in
lower results
IPsec test results
|
CCR1072-1G-8S+ |
CCR1072-1G-8S+
IPsec throughput |
||||||
|
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Single tunnel |
AES-128-CBC + SHA1 |
112.5 |
1260.0 |
112.6 |
461.2 |
115.4 |
59.1 |
|
256 tunnels |
AES-128-CBC + SHA1 |
970.8 |
10873.0 |
1096.5 |
4491.3 |
1190.5 |
609.5 |
|
256 tunnels |
AES-128-CBC + SHA256 |
906.1 |
10148.3 |
1082.8 |
4435.1 |
1163.0 |
595.5 |
|
256 tunnels |
AES-256-CBC + SHA1 |
904.4 |
10129.3 |
1051.0 |
4304.9 |
1190.5 |
609.5 |
|
256 tunnels |
AES-256-CBC + SHA256 |
895.9 |
10034.1 |
1078.3 |
4416.7 |
1135.5 |
581.4 |
1. All tests are done
with Xena Networks specialized test equipment (XenaBay),and done according to
RFC2544 (Xena2544)
2. Max throughput is
determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512,
1400 byte packet sizes
3. Test results show
device maximum performance, and are reached using mentioned hardware and
software configuration, different configurations most likely will result in
lower results
