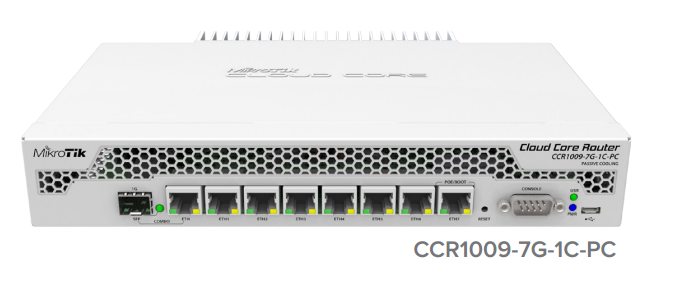

MikroTiK  CCR1009-7G-1C-PC, Ağ yönetimi için özel tasarlanmış 9 Çekirdekli tilera işlemcisi, 1GB DDR3 1333 MHz Ram, birbirinden bağımsız kontrolcüler tarafından yönetilen 8 adet Gigabit ethernet portu ve 1 adet 1nci ethernet bacağı ile kombolanmış 1.25G SFP portu, Enerji beslemesini yedekleme imkanı sunan  özel güç besleme kartı (Güç beslemelerinden 1 tanesi PoE, diğeri de DC adaptör ile olacak şekilde) ile saniye başına 18GBPS trafik taşıma imkanı sağlamaktadır.

MikroTiK  CCR1009-7G-1C-PC, Ağ yönetmi için özel tasarlanmış 9 Çekirdekli tilera işlemcisi, 1GB DDR3 1333 MHz Ram, birbirinden bağımsız kontrolcüler tarafından yönetilen 8 adet Gigabit ethernet portu ve 1 adet 1'nci ethernet bacağı ile kombolanmış 1.25G SFP portu, Enerji beslemesini yedekleme imkanı sunan  özel güç besleme kartı (Güç beslemelerinden 1 tanesi PoE, diğeri de DC araptör ile olacak şekilde) ile saniye başına 18GBPS trafik taşıma imkanı sağlamaktadır. Geniş ölçekli ağ yönetimi için benzersiz bir şekilde tasarlanmış teknik donanımına hayat veren 64bit mimarisi baz alınarak yeniden tasarlanan RouterOS işletim sistemi  ile ağ yönetiminizi hiç olmadığı kadar esnek hale getirebilirsiniz.

Specifications

Details
Product code	CCR1009-7G-1C-PC
Architecture	TILE
CPU	TLR4-00980
CPU core count	9
CPU nominal frequency	1 GHz
Dimensions	272 x 190 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
IPsec hardware acceleration	Yes

Powering

Details

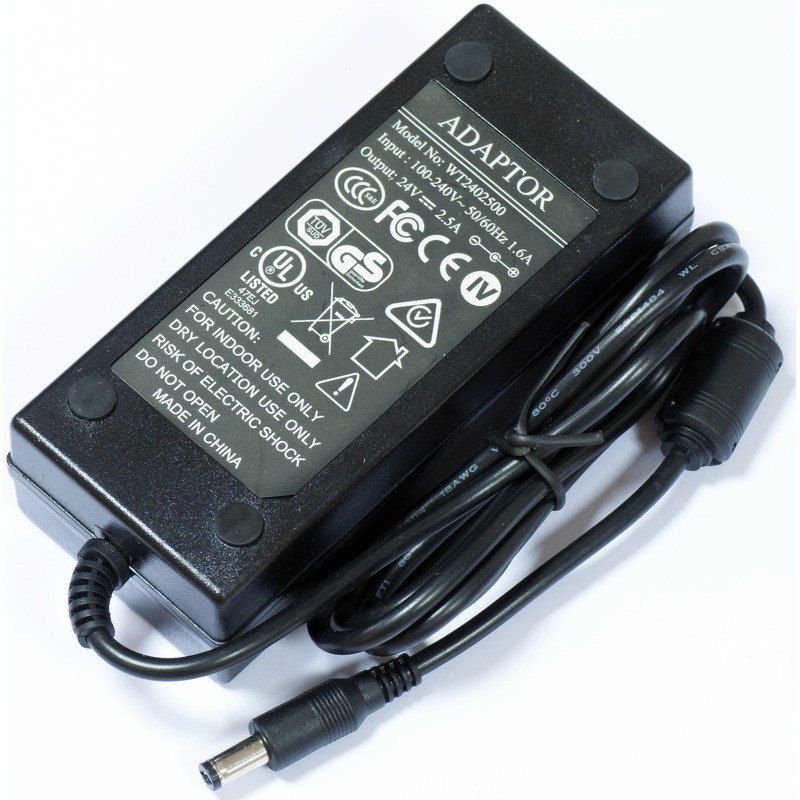

Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	18-57 V
Max power consumption	30 W
Max power consumption without attachments	25 W

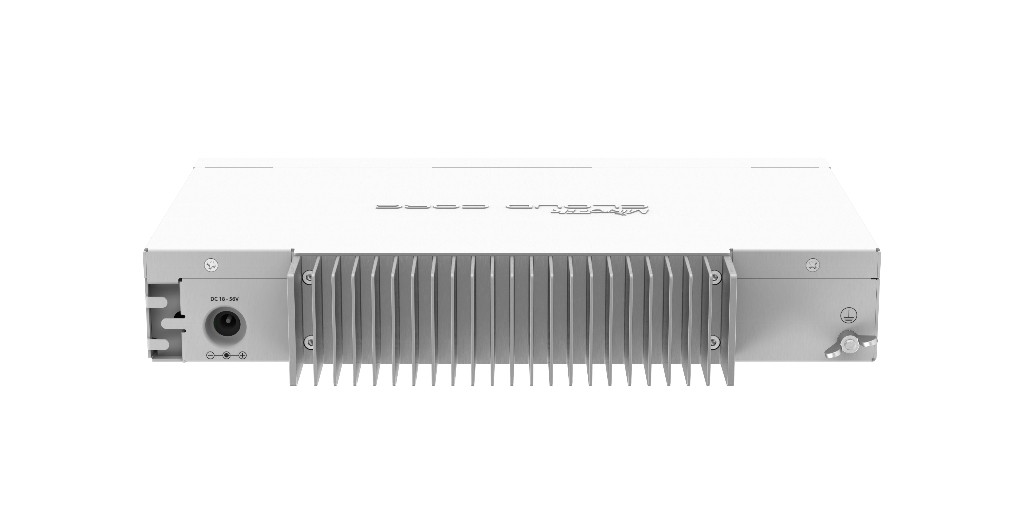

Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-57 V

Ethernet

Details
10/100/1000 Ethernet ports	7
Ethernet Combo ports	1

Peripherals

Details
Serial console port	RS232 + Header
Number of USB ports	1
USB Power Reset	Yes
USB slot type	microUSB type AB
Max USB current (A)	1

Other

Details
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Ethernet test results

CCR1009-7G-1C-PC		Tile 9 core all port test with combo-port
Mode	Configuration	1518 byte		512 byte		64 byte
		kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	652.8	7,927.6	1,931.2	7,910.2	14,874.0	7,615.5
Bridging	25 bridge filter rules	649.6	7,888.7	1,183.8	4,848.8	1,184.0	606.2
Routing	none (fast path)	652.8	7,927.6	1,931.2	7,910.2	14,581.0	7,465.5
Routing	25 simple queues	652.8	7,927.6	1,686.0	7,175.6	1,699.6	1,142.1
Routing	25 ip filter rules	615.8	7,478.3	660.9	2,812.8	668.3	449.1

1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

CCR1009-7G-1C-PC		CCR1009 series 1 GHz IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
		kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	112.5	1260.0	112.6	461.2	115.4	59.1
256 tunnels	AES-128-CBC + SHA1	232.1	2599.5	268.2	1098.5	277.3	142.0
256 tunnels	AES-128-CBC + SHA256	232.1	2599.5	268.2	1098.5	277.3	142.0
256 tunnels	AES-256-CBC + SHA1	230.0	2576.0	265.4	1087.1	260.7	133.5
256 tunnels	AES-256-CBC + SHA256	230.0	2576.0	265.4	1087.1	260.7	133.5

1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
