Mikrotik hap AC3 LTE6 Mobile Wifi Router Firewall Hotspot
Şirket içi ürün
Reviews & Ratings

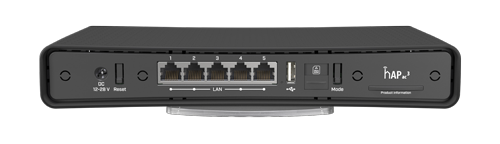

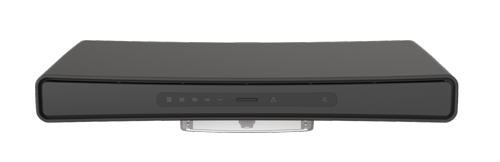

MikroTik hAP ac³ LTE6 - RBD53iG-5HacD2HnD LTE6 Mobile Wifi Router Firewall Hotspot
hAP ac³ LTE6 kitinde en yeni CAT6 LTE modemimiz bulunur. LTE bağlantısını 300 Mbps'ye varan hızlarda kullanmanıza izin vererek hat birleştirme sağlar. Aynı anda birden fazla LTE bandı kullanarak çalışır. Bölgede çok sayıda LTE kullanıcısı olduğunda büyük bir avantaj sağlar...

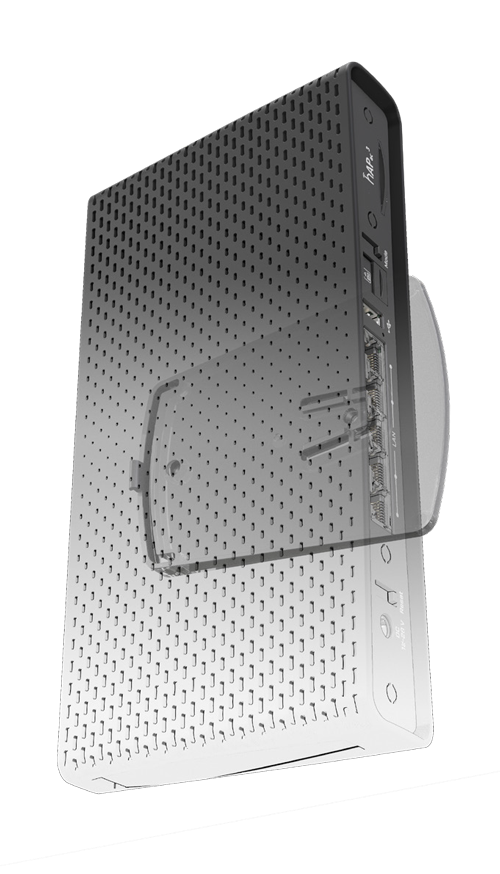

5 Gigabit Ethernet bağlantı noktası, 256 MB RAM ve dört çekirdekli CPU ile hAP ac³ LTE6 kiti, en büyük ve en talepkar evleri bile tatmin edebilir. Ekstra depolama alanı eklemek için kullanabileceğiniz tam boyutlu bir USB bağlantı noktası vardır. Montaj Aparatı, cihazın dikey veya yatay olarak monte edilmesini sağlar. Duvara montaj seti de dahildir.
Frekansı tüm komşularınızla paylaşmayı bırakın! Eşzamanlı kapsama alanı için güçlü çift kanal ve çift bantlı 2,4/5 GHz kablosuz, kalabalık ortamlarda çoğu parazit sorununu çözecektir. Daha eski cihazlar için 2,4 GHz kanalını ve diğer her şey için 5 GHz kanalını kullanabilirsiniz.
Specifications
| Details | |
|---|---|
| Product code | RBD53GR-5HacD2HnD&R11e-LTE6 |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Switch chip model | IPQ-4019 |
| Dimensions | 251 x 129 x 39 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -30°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 16 W |
| Cooling type | Passive |
Mobile
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
| TAC | 35666210 |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Ethernet test results
|
RBD53GR-5HacD2HnD&R11e-LTE6 |
IPQ-4019 1G all port test |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
162,5 |
1973.4 |
469,9 |
1924.7 |
1488,4 |
762.1 |
|
Bridging |
25 bridge filter rules |
162,5 |
1973.4 |
351,2 |
1438.5 |
352,1 |
180.3 |
|
Routing |
none (fast path) |
162,5 |
1973.4 |
469,9 |
1924.7 |
1488,4 |
762.1 |
|
Routing |
25 simple queues |
162,5 |
1973.4 |
468,6 |
1919.4 |
493,4 |
252.6 |
|
Routing |
25 ip filter rules |
162,5 |
1973.4 |
222,8 |
912.6 |
227,4 |
116.4 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet
sizes
- Test results show device maximum performance, and
are reached using mentioned hardware and software configuration, different
configurations most likely will result in lower results
IPsec test results
|
RBD53GR-5HacD2HnD&R11e-LTE6 |
IPQ-4018 IPsec throughput |
||||||
|
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Single tunnel |
AES-128-CBC + SHA1 |
37.9 |
424.5 |
59 |
241.7 |
61.6 |
31.5 |
|
256 tunnels |
AES-128-CBC + SHA1 |
36 |
403.2 |
38.5 |
157.7 |
39.8 |
20.4 |
|
256 tunnels |
AES-128-CBC + SHA256 |
36 |
403.2 |
38.5 |
157.7 |
39.8 |
20.4 |
|
256 tunnels |
AES-256-CBC + SHA1 |
34.4 |
385.3 |
37.9 |
155.2 |
39.8 |
20.4 |
|
256 tunnels |
AES-256-CBC + SHA256 |
34.4 |
385.3 |
37.9 |
155.2 |
39.8 |
20.4 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet
sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
