Mikrotik CCR1009-7G-1C-1S+ PC Firewall Router Hotspot
Şirket içi ürün
Reviews & Ratings

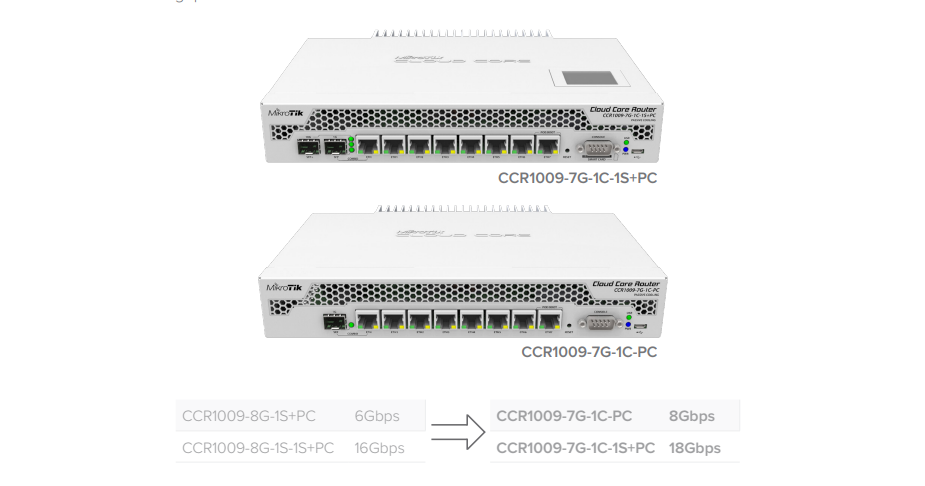

MikroTik CCR1009-7G-1C-1S+ PC 8 Gigabit Port 1SFP+ 1SFP Firewall Router Hotspot
MikroTiK CCR1009-7G-1C-1Splus PC, Ağ yönetmi için özel tasarlanmış 9 Çekirdekli tilera işlemcisi, 2GB DDR3 1333 MHz Ram, birbirinden bağımsız kontrolcüler tarafından yönetilen 8 adet Gigabit ethernet portu, 1 adet 10G SFP+ portu, ve 1 adet 1'nci ethernet bacağı ile kombolanmış 1.25G SFP portu, Enerji beslemesini yedekleme imkanı sunan 2 adet güç kaynağı ile saniye başına 18GBPS trafik taşıma imkanı sağlamaktadır. Geniş ölçekli ağ yönetimi için benzersiz bir şekilde tasarlanmış teknik donanımına hayat veren 64bit mimarisi baz alınarak yeniden tasarlanan RouterOS işletim sistemi ile ağ yönetiminizi hiç olmadığı kadar esnek hale getirebilirsiniz.
Specifications
| Details | |
|---|---|
| Product code | CCR1009-7G-1C-1S+PC |
| Architecture | TILE |
| CPU | TLR4-00980 |
| CPU core count | 9 |
| CPU nominal frequency | 1 GHz |
| Dimensions | 272 x 190 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 38 W |
| Max power consumption without attachments | 33 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 7 |
| Ethernet Combo ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Smart card (Mini SIM) |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Ethernet test results
CCR1009-7G-1C-1S+ | Tile 9 core all port test with combo-port and SFP+ | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 1300.4 | 15791.9 | 3759.4 | 15398.5 | 9783.4 | 5322.2 |
Bridging | 25 bridge filter rules | 1012.4 | 12294.2 | 1116.1 | 4571.4 | 1112.6 | 605.2 |
Routing | none (fast path) | 1300.4 | 15791.9 | 3759.4 | 15398.5 | 12480 | 6789.1 |
Routing | 25 simple queues | 1155.2 | 14029.1 | 1218.5 | 4991 | 1200.4 | 653 |
Routing | 25 ip filter rules | 679.8 | 8255.2 | 703 | 2879.7 | 708.3 | 385.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
CCR1009-7G-1C-1S+ | CCR1009 series 1.2 GHz IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 130.5 | 1461.6 | 123.4 | 505.4 | 115.4 | 59.1 |
256 tunnels | AES-128-CBC + SHA1 | 237.4 | 2658.9 | 278.2 | 1139.5 | 293.0 | 150.0 |
256 tunnels | AES-128-CBC + SHA256 | 237.4 | 2658.9 | 278.2 | 1139.5 | 293.0 | 150.0 |
256 tunnels | AES-256-CBC + SHA1 | 240.5 | 2693.6 | 275.5 | 1128.4 | 292.7 | 149.9 |
256 tunnels | AES-256-CBC + SHA256 | 240.5 | 2693.6 | 275.5 | 1128.4 | 292.7 | 149.9 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
