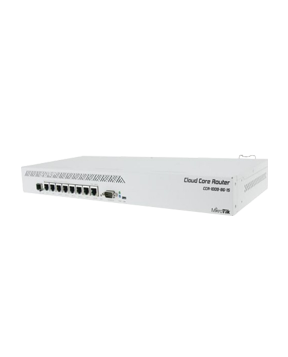

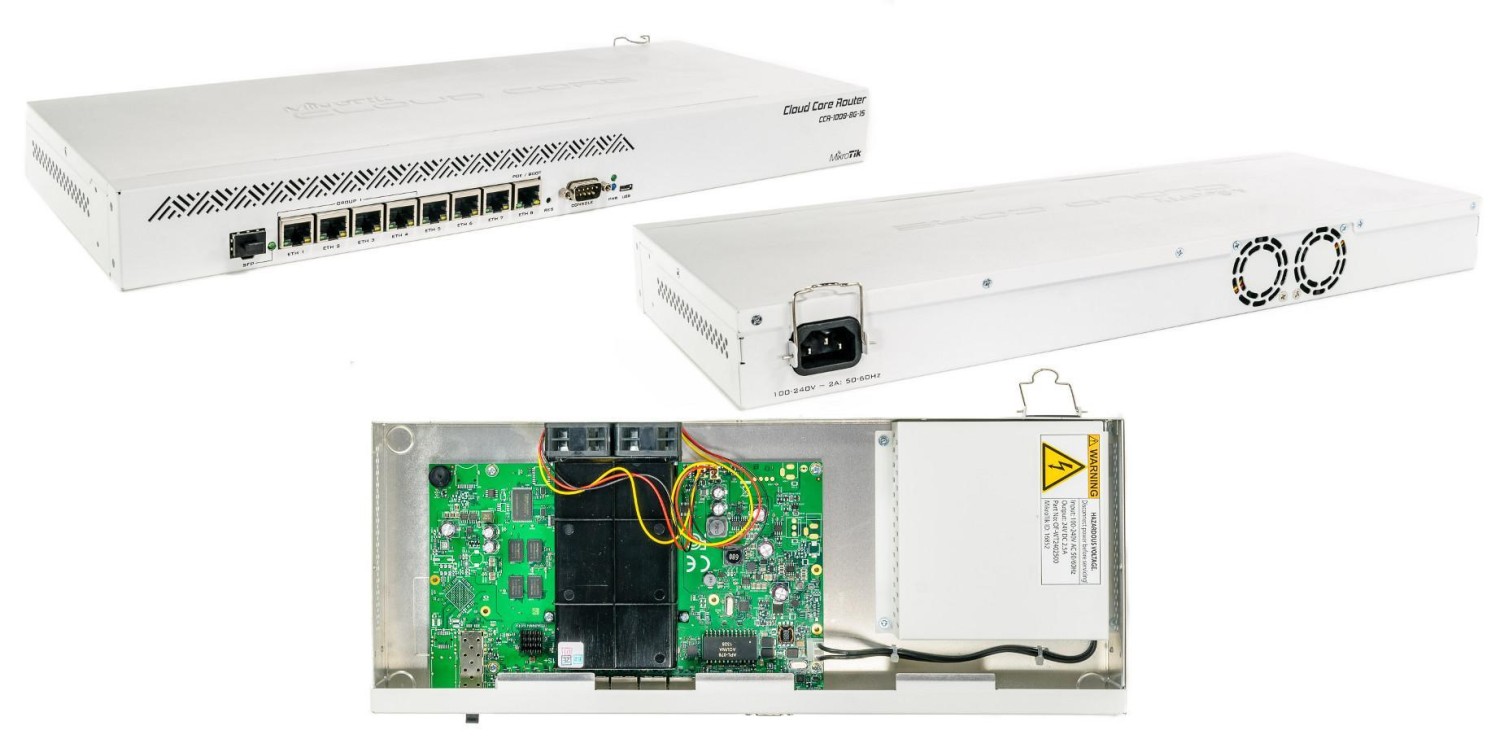

Mikrotik CloudCore CCR1009-8G-1S RouterBoard , Cloud Core Router
Bu ürünün üretimi durdurulmuş olup yeni seri modeli - CCR1009-7G-1C-1S+ olarak satışa devam etmektedir.
Önceki Versiyon
|
CCR1009-8G-1S+PC |
6Gbps |
|
CCR1009-8G-1S-1S+PC |
16Gbps |
|
CCR1009-8G-1S-1S+ |
16Gbps |
Yeni Versiyon
|
8Gbps |
|
|
18Gbps |
|
|
18Gbps |
Specifications
| Details | |
|---|---|
| Product code | CCR1009-8G-1S |
| CPU | TLR4-00980CG-10CE |
| CPU core count | 9 |
| CPU nominal frequency | 1.2 GHz |
| Switch chip model | AR8327-BL1A-R |
| Dimensions | 444x175x47mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20C .. +60C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 |
| Max power consumption | 34 W |
| Max power consumption without attachments | 34W |
| PoE in | Passive PoE |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial console port | RS232 + Header |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Ethernet test results
|
CCR1009-8G-1S |
Tile 9 core all port test |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
487 |
5914.1 |
1412 |
5783.6 |
9060 |
4638.7 |
|
Bridging |
25 bridge filter rules |
487 |
5914.1 |
1390 |
5693.4 |
1447.6 |
741.2 |
|
Routing |
none (fast path) |
487 |
5914.1 |
1412 |
5783.6 |
9060 |
4638.7 |
|
Routing |
25 simple queues |
487 |
5914.1 |
1412 |
5783.6 |
1947.2 |
997 |
|
Routing |
25 ip filter rules |
487 |
5914.1 |
870.1 |
3563.9 |
878.7 |
449.9 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet
sizes
- Test results show device maximum performance, and
are reached using mentioned hardware and software configuration, different
configurations most likely will result in lower results
