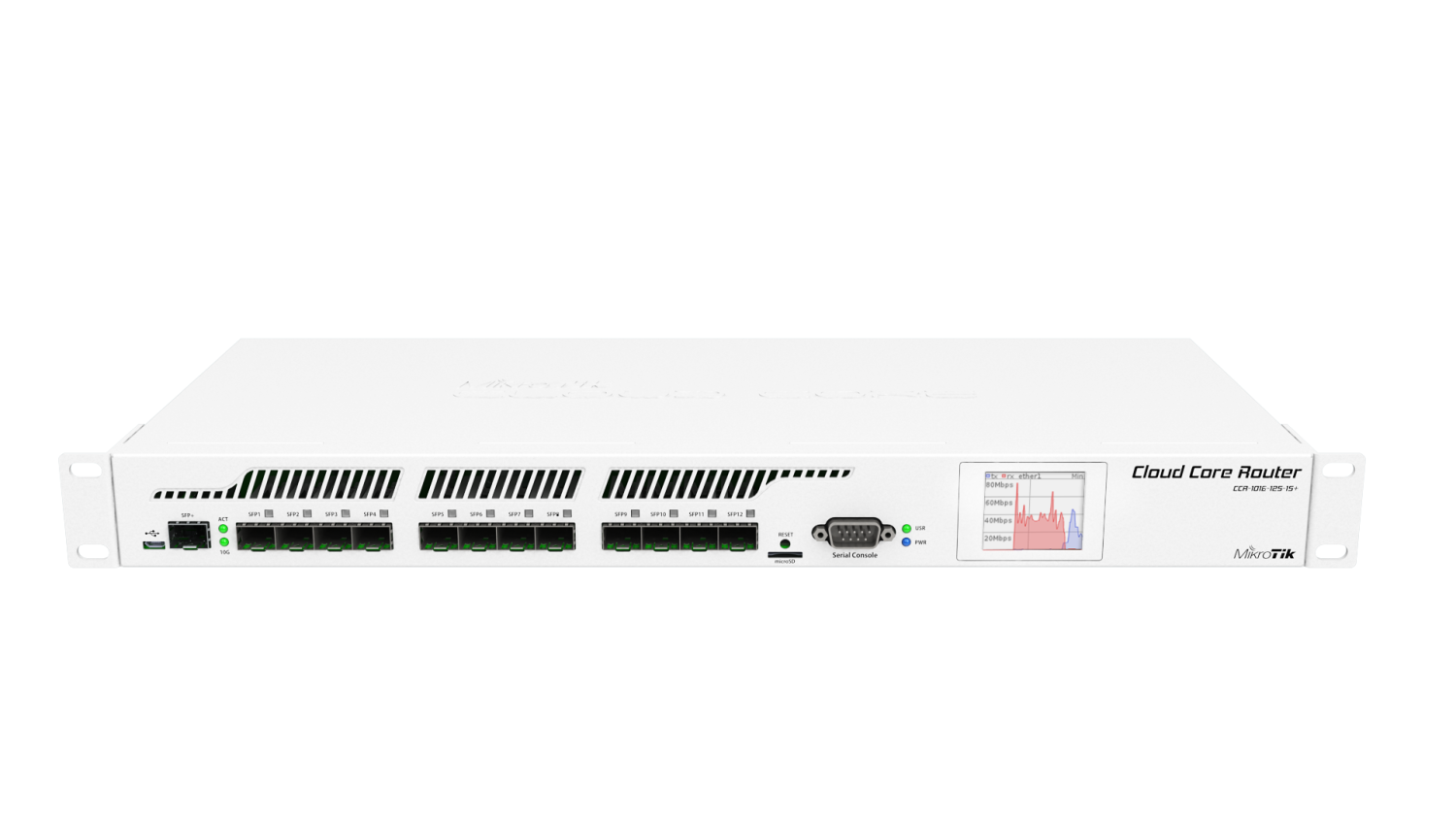

Mikrotik CCR1016-12S-1S+ Backbone Firewall Router
Şirket içi ürün
Reviews & Ratings
Mikrotik RB CCR1016-12S-1S+ 12SFP 1SFP+ Firewall Router Omurga Switch
MikroTiK CCR1016-12S-1S+ Backbone Firewall Router,
Ağ yönetmi için özel tasarlanmış 16 Çekirdekli tilera işlemcisi, 2GB DDR3 1333 MHz Ram,birbirinden bağımsız kontrolcüler tarafından yönetilen 12 adet SFP, 1 adet 10G SFP+ portu, Enerji beslemesini yedekleme imkanı sunan 2 adet hot swap (Hızlı değiştirilebilir) 2 adet güç kaynağı ile saniye başına 24.000.000 paket taşıma imkanı sağlamaktadır. 64bit mimarisi baz alınarak yeniden tasarlanan RouterOS işletim sistemininde RAM bellek sınırlandırılması kaldırılmıştır, dilediğiniz zaman cihazınızın bellek kapasitesini yükseltebilirsiniz.Geniş ölçekli ağ yönetimi için benzersiz bir şekilde tasarlanmış teknik donanımına hayat veren RouterOS işletim sistemi ile ağ yönetiminizi hiç olmadığı kadar esnek hale getirebilirsiniz.
Specifications
| Details | |
|---|---|
| Product code | CCR1016-12S-1S+ |
| Architecture | TILE |
| CPU | TLR4-01680 |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 197 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|

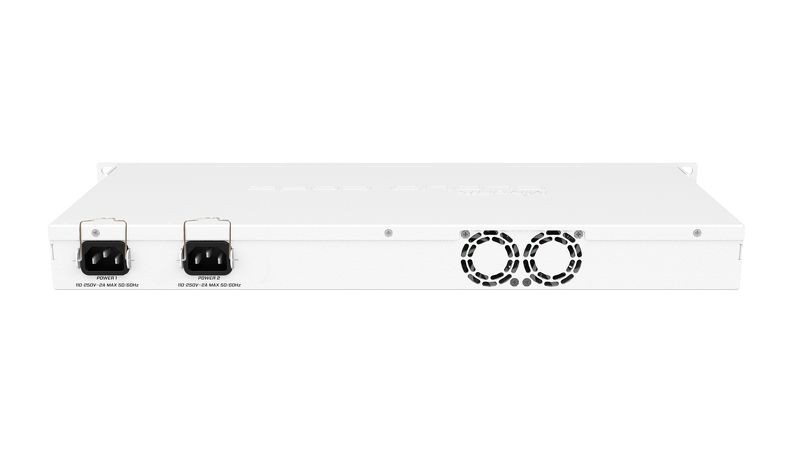

| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 47.5 W |
| Max power consumption without attachments | 34 W |
| Cooling type | 2 fans |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 12 |
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Ethernet test results
|
CCR1016-12S-1S+r2 |
Tile 16 core max possible throughput
test with SFP+ port |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
1625,2 |
19736,4 |
4698,3 |
19244,2 |
17857,1 |
9142,8 |
|
Bridging |
25 bridge filter rules |
1624,2 |
19724,3 |
2120,8 |
8686,8 |
2819,5 |
1443,6 |
|
Routing |
none (fast path) |
1625,5 |
19740,1 |
4609,8 |
18881,7 |
17857,1 |
9142,8 |
|
Routing |
25 simple queues |
1625,2 |
19736,4 |
2610,4 |
10692,2 |
2787,7 |
1427,3 |
|
Routing |
25 ip filter rules |
1043,5 |
12672,3 |
1253,4 |
5133,9 |
1316 |
673,8 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet
sizes
- Test results show device maximum performance, and
are reached using mentioned hardware and software configuration, different
configurations most likely will result in lower results
IPsec test results
|
CCR1016-12S-1S+r2 |
CCR1016 series IPsec throughput |
||||||
|
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Single tunnel |
AES-128-CBC + SHA1 |
130.5 |
1461.6 |
123.4 |
505.4 |
115.4 |
59.1 |
|
256 tunnels |
AES-128-CBC + SHA1 |
363.8 |
4074.6 |
413.8 |
1694.9 |
425.9 |
218.1 |
|
256 tunnels |
AES-128-CBC + SHA256 |
357.6 |
4005.1 |
399.2 |
1635.1 |
425.9 |
218.1 |
|
256 tunnels |
AES-256-CBC + SHA1 |
354.9 |
3974.9 |
399.2 |
1635.1 |
425.9 |
218.1 |
|
256 tunnels |
AES-256-CBC + SHA256 |
348.0 |
3897.6 |
384.6 |
1575.3 |
403.8 |
206.7 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet
sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
