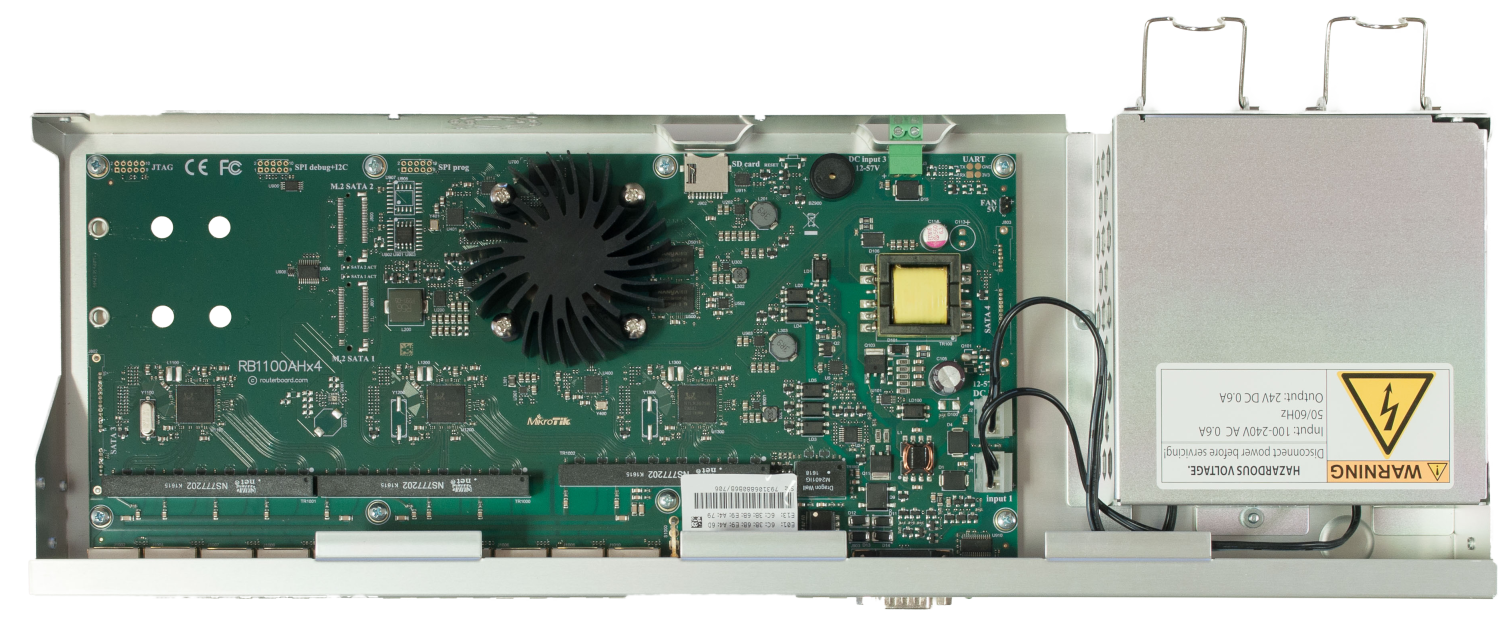

Mikrotik RB1100AHx4 Router Firewall Hotspot
Mikrotik RB1100AHx4 yeteneklerine x4 ile birçok extra özellik sağlandı.
4 Çekirdekli AnnaPurna Alphine AL21400 Serisi ( Amazon ve Annapurna Lab geliştirdiği ) Chipset ile 4 Cekirdekli Cortex A15 işlemcisi ile 1.4 Ghz Maksimum Throughput sağlandı.
Specifications
| Details | |
|---|---|
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Switch chip model | RTL8367 |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
Other
| Details | |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Ethernet test results
|
RB1100x4 |
AL21400 1G all port test |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
606.5 |
7,365.3 |
1,736.4 |
7,112.3 |
5,509.7 |
2,821.0 |
|
Bridging |
25 bridge filter rules |
606.5 |
7,365.3 |
1,107.8 |
4,537.5 |
1,153.2 |
590.4 |
|
Routing |
none (fast path) |
606.5 |
7,365.3 |
1,736.4 |
7,112.3 |
5092.3 |
2,607.3 |
|
Routing |
25 simple queues |
606.5 |
7,365.3 |
933.6 |
3,824.0 |
960.3 |
491.7 |
|
Routing |
25 ip filter rules |
543.7 |
6,602.7 |
561.8 |
2,301.1 |
564.6 |
289.1 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet
sizes
- Test results show device maximum performance, and
are reached using mentioned hardware and software configuration, different
configurations most likely will result in lower results
IPsec test results
|
RB1100x4 |
AL21400 IPsec throughput |
||||||
|
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Single tunnel |
AES-128-CBC + SHA1 |
92.1 |
1031.5 |
93.1 |
381.3 |
92.3 |
47.3 |
|
256 tunnels |
AES-128-CBC + SHA1 |
115.5 |
1293.6 |
117.4 |
480.9 |
132.3 |
67.7 |
|
256 tunnels |
AES-128-CBC + SHA256 |
115.5 |
1293.6 |
117.4 |
480.9 |
132.3 |
67.7 |
|
256 tunnels |
AES-256-CBC + SHA1 |
114.6 |
1283.5 |
111.4 |
456.3 |
126.3 |
64.7 |
|
256 tunnels |
AES-256-CBC + SHA256 |
114.6 |
1283.5 |
111.4 |
456.3 |
126.3 |
64.7 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet
sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
