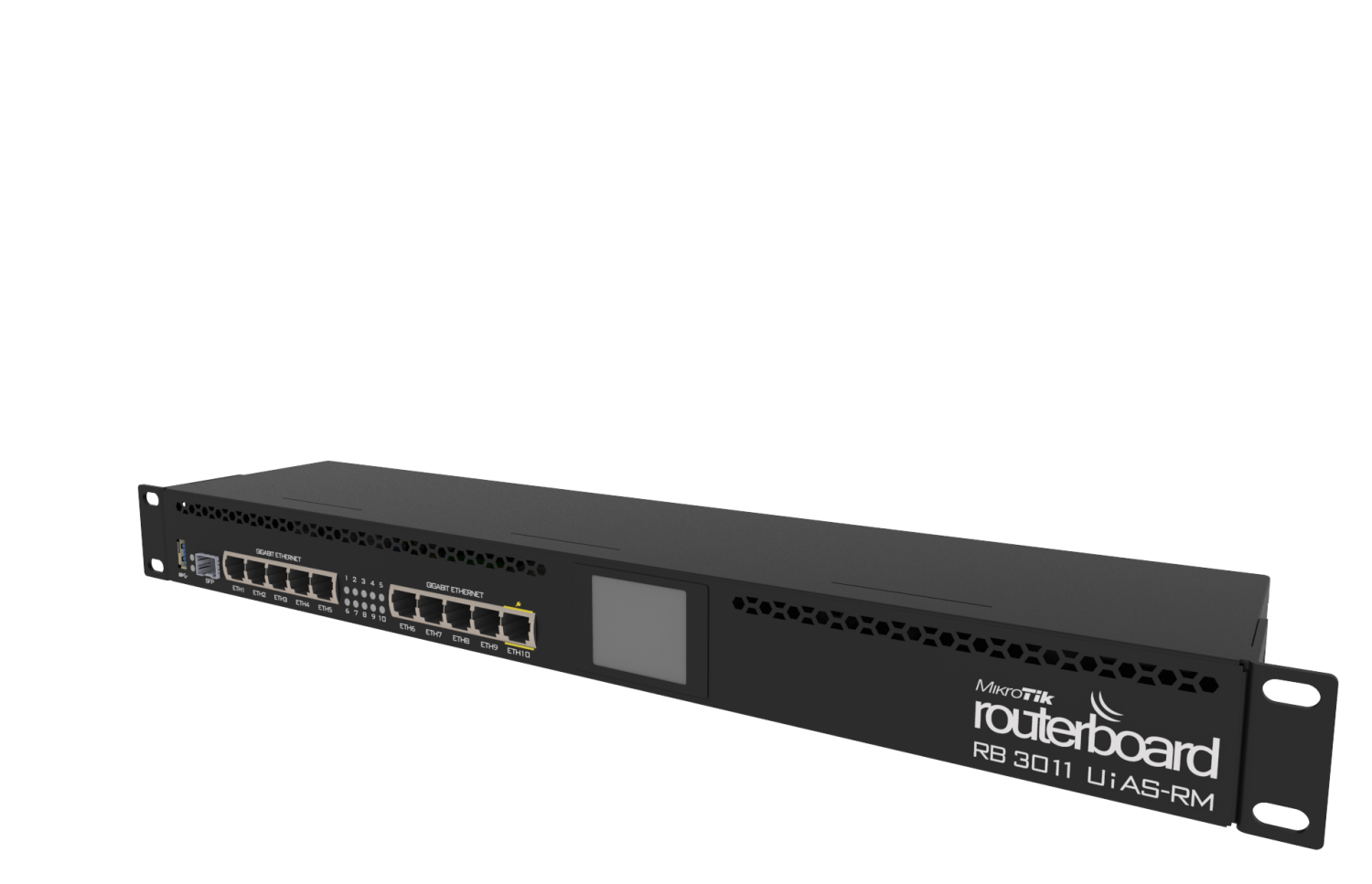

Mikrotik RB3011UiAS-RM 10 Port Gigabit Ethernet 1 Port 1.25G SFP Router Firewall
Specifications
| Details | |
|---|---|
| Product code | RB3011UiAS-RM |
| Architecture | ARM 32bit |
| CPU | IPQ-8064 |
| CPU core count | 2 |
| CPU nominal frequency | 1.4 GHz |
| Switch chip model | QCA8337 |
| Dimensions | 443 x 92 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 600 mA |
| Max total out (A) | 600 mA |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Ethernet test results
|
RB3011UiAS-RM |
IPQ-8064 All port test |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
325.0 |
3,946.8 |
939.8 |
3,849.4 |
1,530.2 |
783.5 |
|
Bridging |
25 bridge filter rules |
325.0 |
3,946.8 |
384.2 |
1,573.7 |
348.6 |
178.5 |
|
Routing |
none (fast path) |
325.0 |
3,946.8 |
939.8 |
3,849.4 |
1,437.6 |
736.1 |
|
Routing |
25 simple queues |
325.0 |
3,946.8 |
419.6 |
1,718.7 |
419.7 |
214.9 |
|
Routing |
25 ip filter rules |
202.0 |
2,453.1 |
204.1 |
836.0 |
188.4 |
96.5 |
- All tests are done
with Xena Networks specialized test equipment (XenaBay),and done according
to RFC2544 (Xena2544)
- Max throughput is
determined with 30+ second attempts with 0,1% packet loss tolerance in 64,
512, 1518 byte packet sizes
- Test results show
device maximum performance, and are reached using mentioned hardware and
software configuration, different configurations most likely will result
in lower results
IPsec test results
|
RB3011UiAS-RM |
IPQ-8064 IPsec throughput |
||||||
|
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Single tunnel |
AES-128-CBC + SHA1 |
69.9 |
782.9 |
76.0 |
311.3 |
75.4 |
38.6 |
|
256 tunnels |
AES-128-CBC + SHA1 |
70.5 |
789.6 |
72.2 |
295.7 |
72.4 |
37.1 |
|
256 tunnels |
AES-128-CBC + SHA256 |
69.5 |
778.4 |
72.2 |
295.7 |
72.4 |
37.1 |
|
256 tunnels |
AES-256-CBC + SHA1 |
69.5 |
778.4 |
72.0 |
294.9 |
72.4 |
37.1 |
|
256 tunnels |
AES-256-CBC + SHA256 |
68.9 |
771.7 |
70.9 |
290.4 |
72.4 |
37.1 |
- All tests are done
with Xena Networks specialized test equipment (XenaBay),and done according
to RFC2544 (Xena2544)
- Max throughput is
determined with 30+ second attempts with 0,1% packet loss tolerance in 64,
512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
