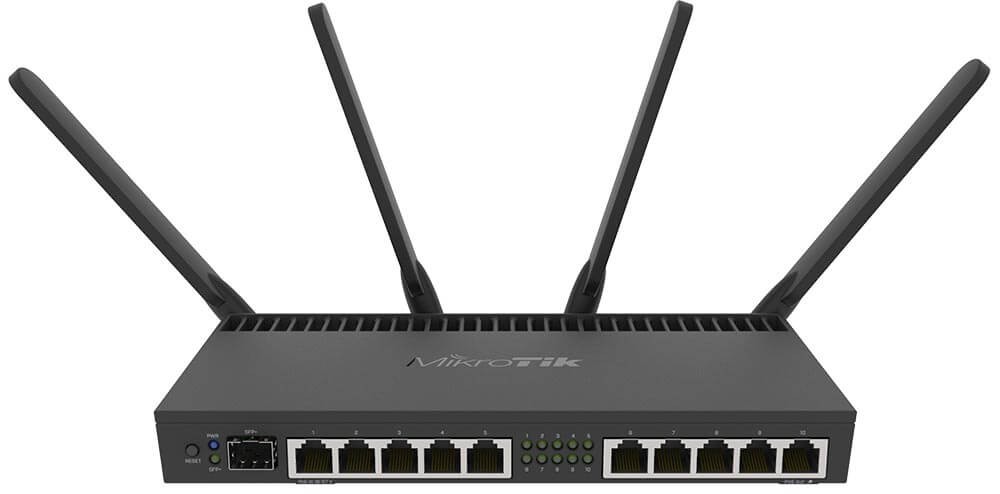

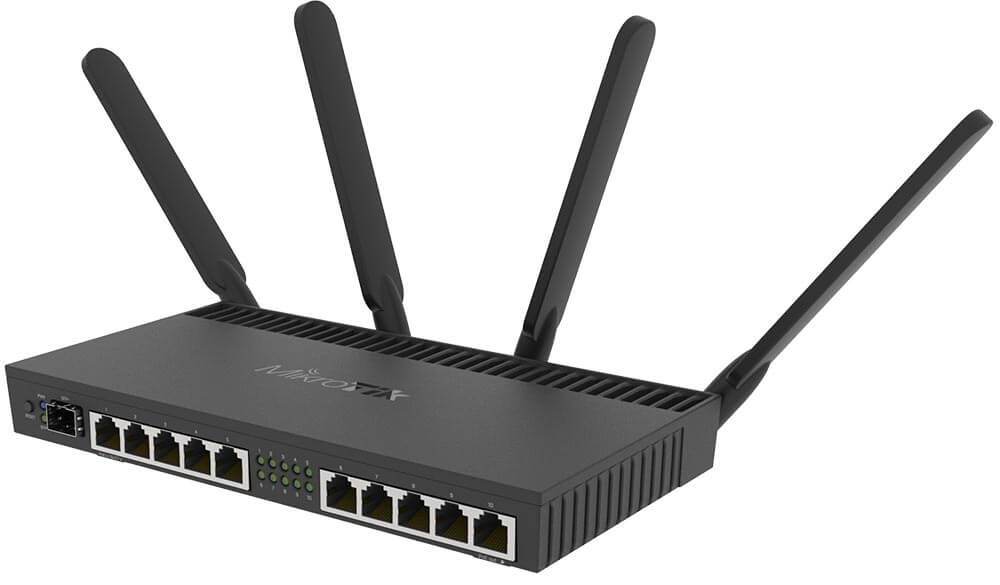

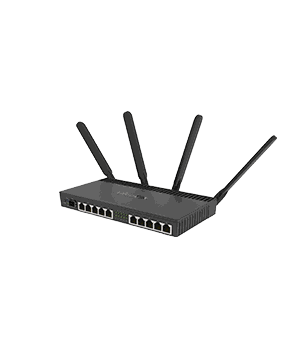

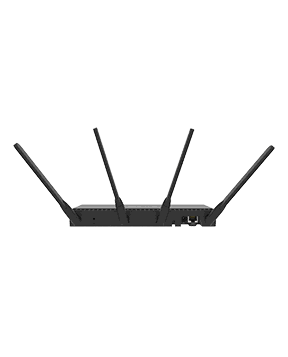

Mikrotik RB4011iGS+5HacQ2HnD-IN Router Firewall Hotspot
Şirket içi ürün
Reviews & Ratings
Mikrotik RB4011iGS+5HacQ2HnD-IN Router Firewall Hotspot
Specifications
| Details | |
|---|---|
| Product code | RB4011iGS+5HacQ2HnD-IN |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | auto (533 - 1900) MHz |
| Switch chip model | RTL8367SB |
| Dimensions | 228 x 120 x 30 mm |
| RouterOS license | 5 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 45°C |
| IPsec hardware acceleration | Yes |
Wireless capabilities
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 1733 Mbit/s |
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 3 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | R11e-2HnD |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| WiFi speed | AC2000 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| MiniPCI-e slots | 1 |
| Serial console port | RJ45 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 44 W |
| Max power consumption without attachments | 23 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 420 mA |
| Max total out (A) | 600 mA |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 33 | -96 |
| 54MBit/s | 29 | -81 |
| MCS0 | 33 | -96 |
| MCS7 | 28 | -77 |
| MCS9 | 26 | -72 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 28 | -100 |
| 11MBit/s | 28 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 24 | -79 |
Ethernet test results
|
RB4011iGS+5HacQ2HnD-IN |
AL21400 1G/S+ all port test |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none (fast path) |
806,4 |
9,792.9 |
2312,9 |
9,473.6 |
5509,7 |
2,821.0 |
|
Bridging |
25 bridge filter rules |
806,4 |
9,792.9 |
1037,4 |
4,249.2 |
1153,2 |
590.4 |
|
Routing |
none (fast path) |
806,4 |
9,792.9 |
1923,3 |
7,877.8 |
5092,3 |
2,607.3 |
|
Routing |
25 simple queues |
806,4 |
9,792.9 |
1046,6 |
4,286.9 |
960,3 |
491.7 |
|
Routing |
25 ip filter rules |
593,7 |
7,209.9 |
625,2 |
2,560.8 |
564,6 |
289.1 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet
sizes
- Test results show device maximum performance, and
are reached using mentioned hardware and software configuration, different
configurations most likely will result in lower results
IPsec test results
|
RB4011iGS+5HacQ2HnD-IN |
AL21400 IPsec throughput |
||||||
|
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Single tunnel |
AES-128-CBC + SHA1 |
92.1 |
1031.5 |
93.1 |
381.3 |
92.3 |
47.3 |
|
256 tunnels |
AES-128-CBC + SHA1 |
115.5 |
1293.6 |
117.4 |
480.9 |
132.3 |
67.7 |
|
256 tunnels |
AES-128-CBC + SHA256 |
115.5 |
1293.6 |
117.4 |
480.9 |
132.3 |
67.7 |
|
256 tunnels |
AES-256-CBC + SHA1 |
114.6 |
1283.5 |
111.4 |
456.3 |
126.3 |
64.7 |
|
256 tunnels |
AES-256-CBC + SHA256 |
114.6 |
1283.5 |
111.4 |
456.3 |
126.3 |
64.7 |
- All tests are done with Xena Networks specialized
test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second
attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet
sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
